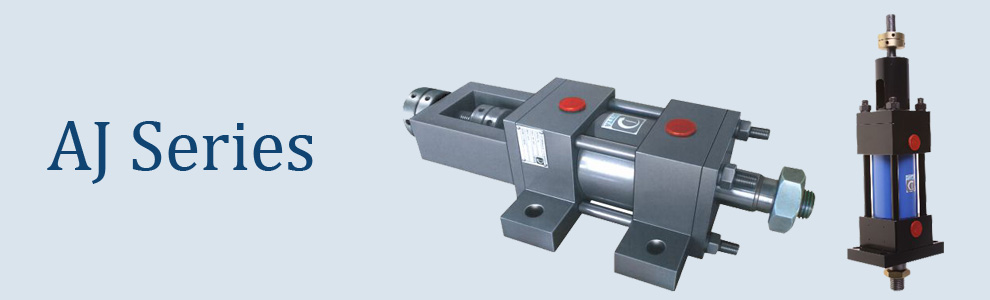

AJ Series
[ Tie rod construction, Stroke adjustable
Maximum pressure - 160 bar ]
Ordering details of AJ series hydraulic cylinders
Features and specifications
• Mechanical stroke adjustment• Standard construction, square head, tie rod design
• Provision for smaller as well as bigger rod diameter for each bore size
• Bore sizes : 40mm to 160mm
• Strokes available in any practical stroke length
• Maximum working pressure : 160 bar
• Piston rods : 18mm to 110mm
• Non-cushioned
• Temperature range -
-20 C to 80 C (standard)
-20 C to +150 C (optional)
• Standard fluid : Mineral oil, DIN 51524 (HL, HLP)
• Seals types to suit a wide variety of operating environments

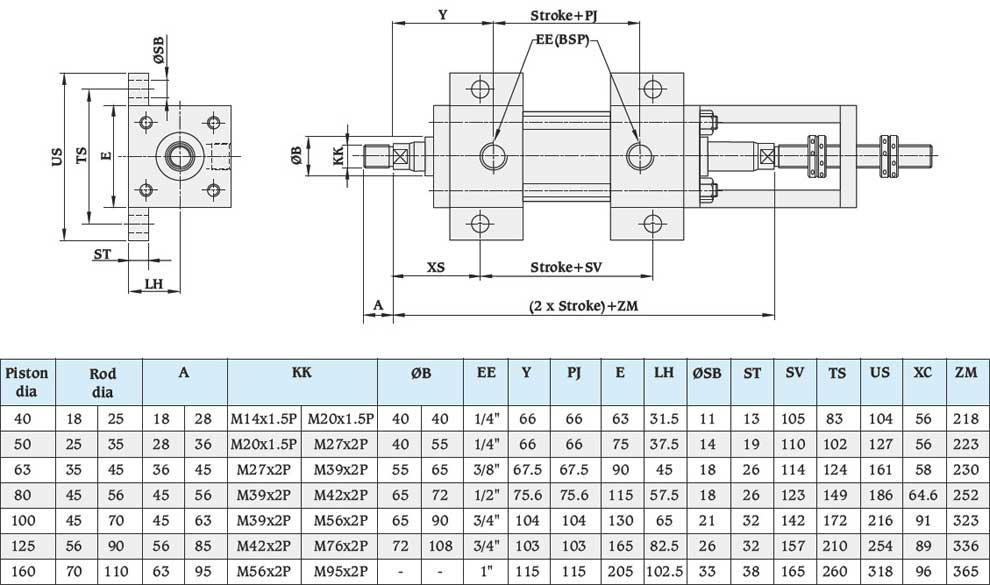

All dimensions are in millimeters unless otherwise stated.
