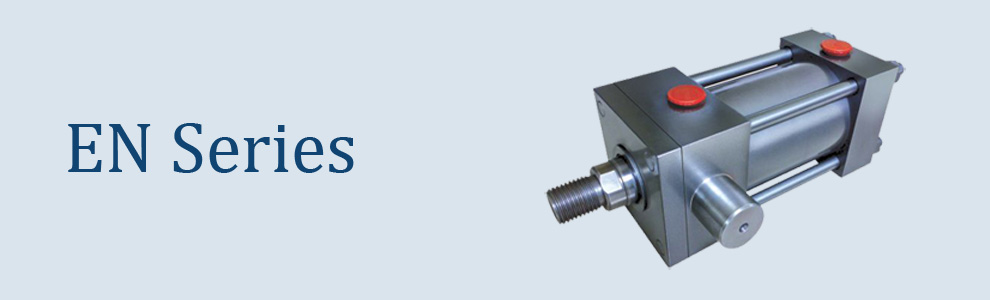

EN Series

[ Tie rod construction Maximum pressure - 160 bar ]

Cylinder selection guide

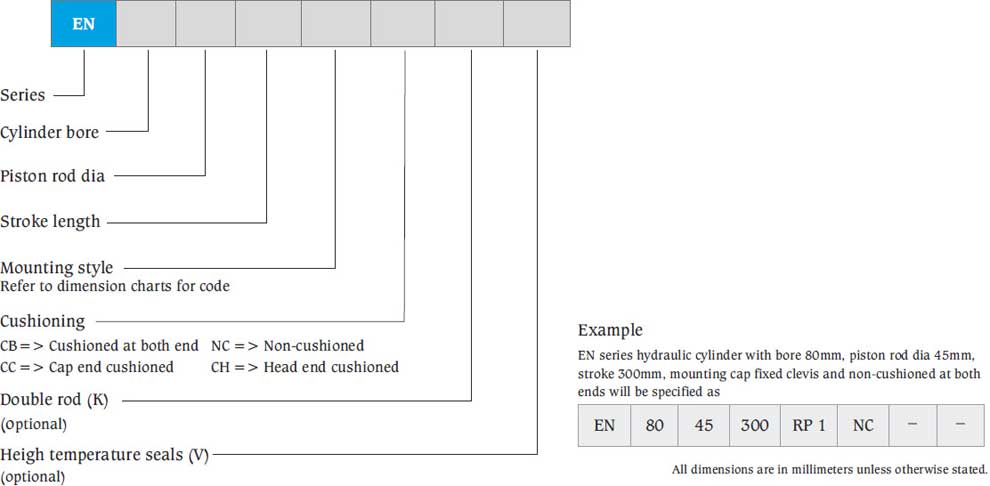

Ordering details of EN series hydraulic cylinders















Features and specifications

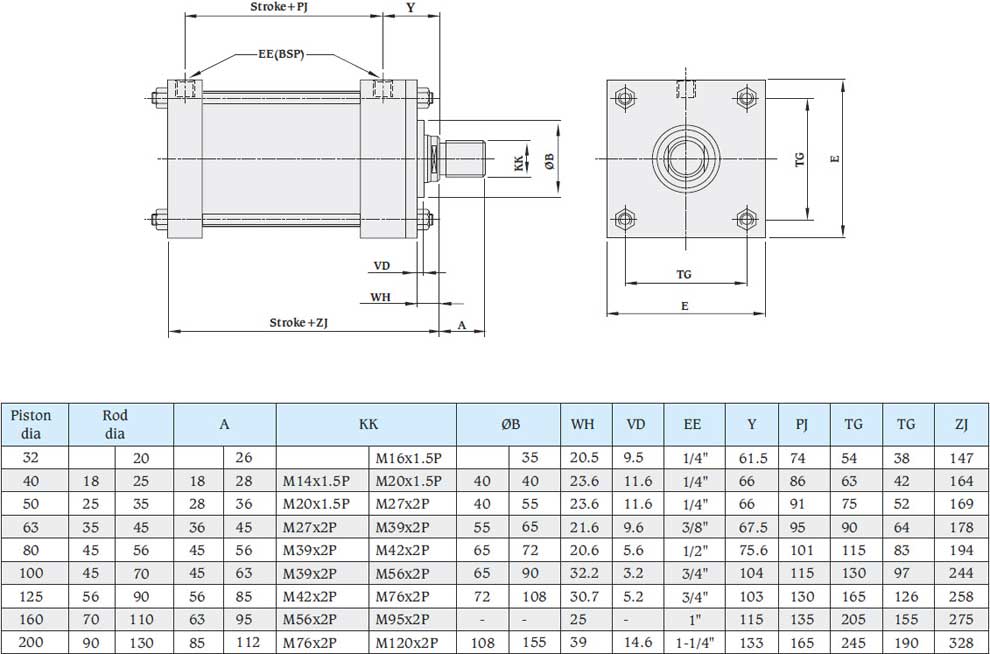

• Standard construction, square head, tie rod design
• 10 standard mounting styles available
• Provision for smaller as well as bigger rod diameter for each    bore size
• Wide range of mounting accessories
• Bore sizes : 32mm to 200mm
• Strokes available in any practical stroke length
• Maximum working pressure - 160 bar
• Piston rods - 18 mm to 130 mm
• Single and double rod designs
• Cushioning available from 63mm bore onwards only
• Cushions available at either end
• Temperature range : -
   20 C to +80 C (standard)
   20 C to +150 C (optional)
• Standard fluid : Mineral oil DIN 51524 (HL, HLP)
• Seal types to suit a wide variety of operating environments

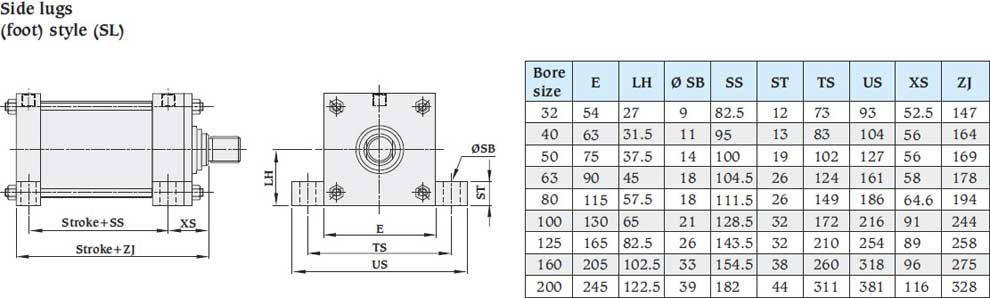

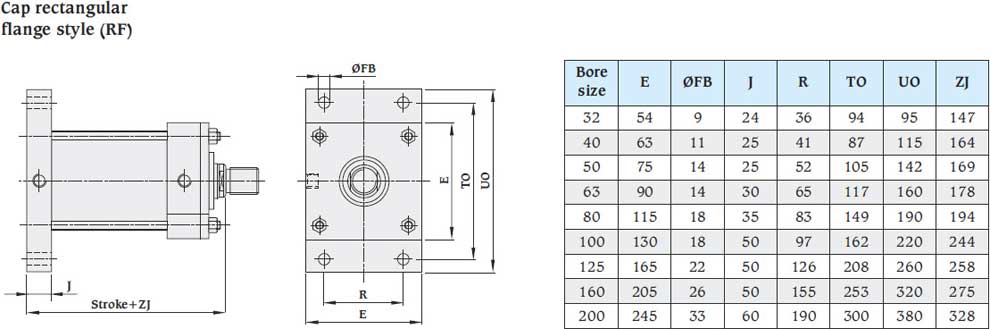

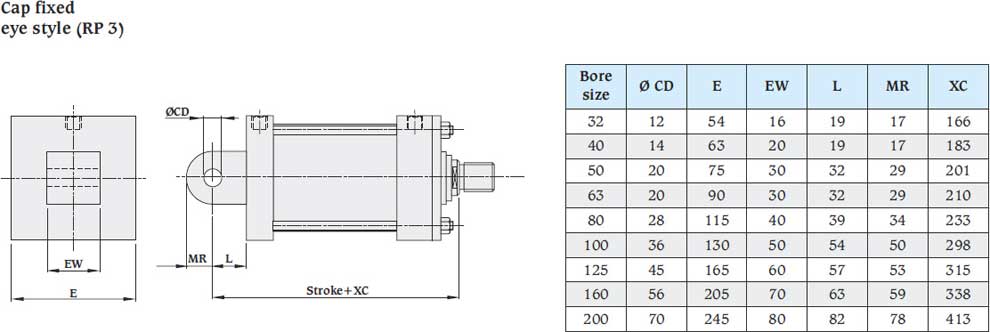

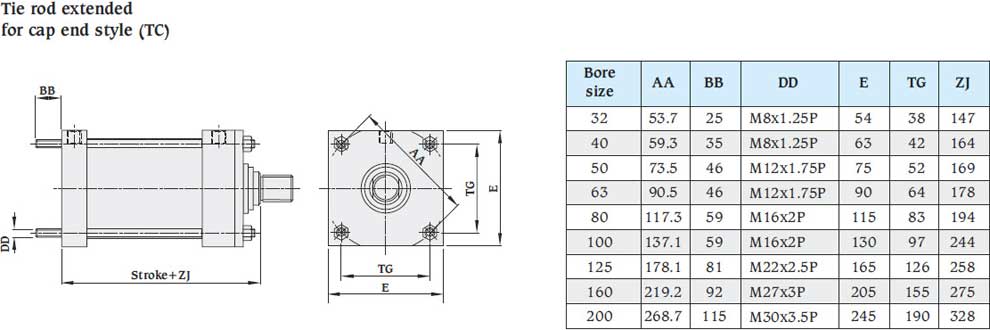

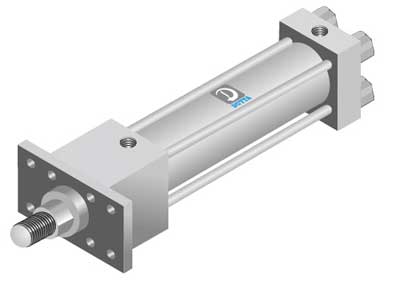

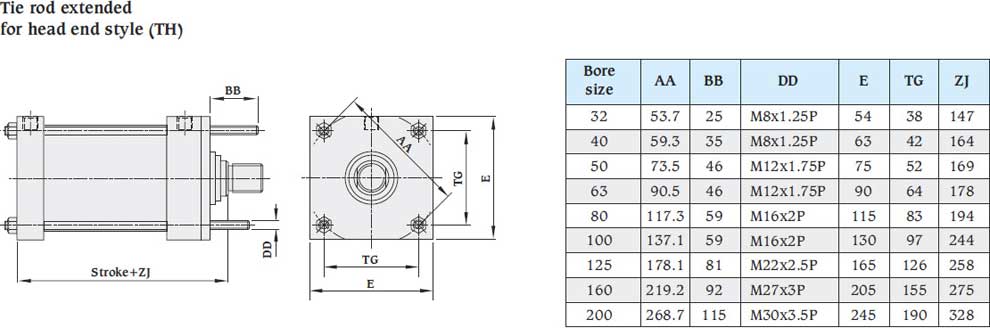

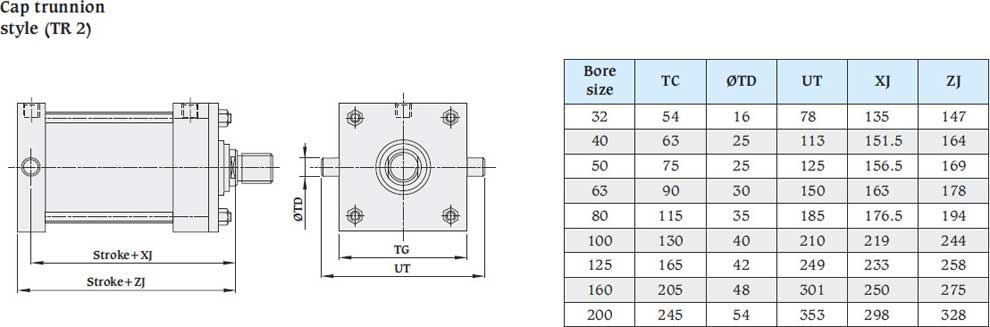

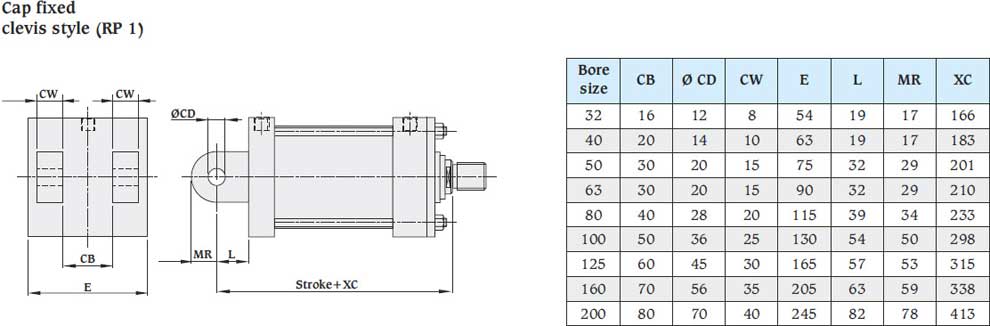

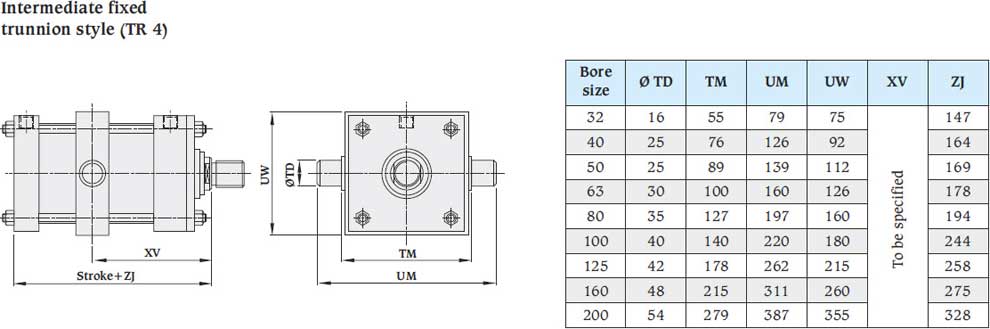

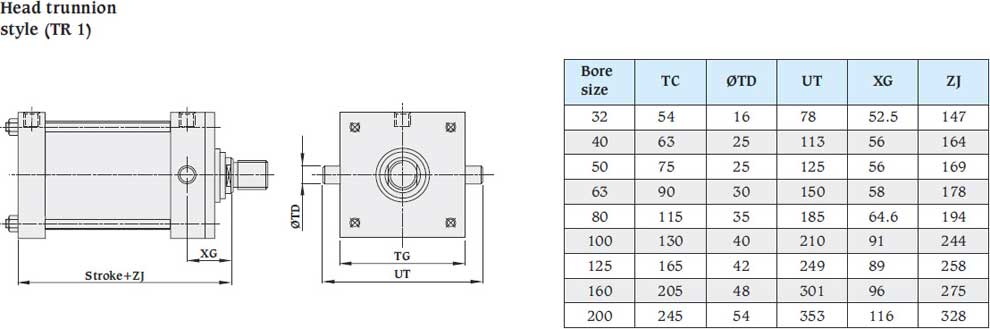

Tierod Extended Mounting Head Rectangular Flange Cap Rectangular Flange Head Trunnion Mounting Cap Trunnion Mounting Intermediate Trunnion Cap Fixed Clevis Cap fixed Eye Side Lugs



All dimensions are in millimeters unless otherwise stated.
