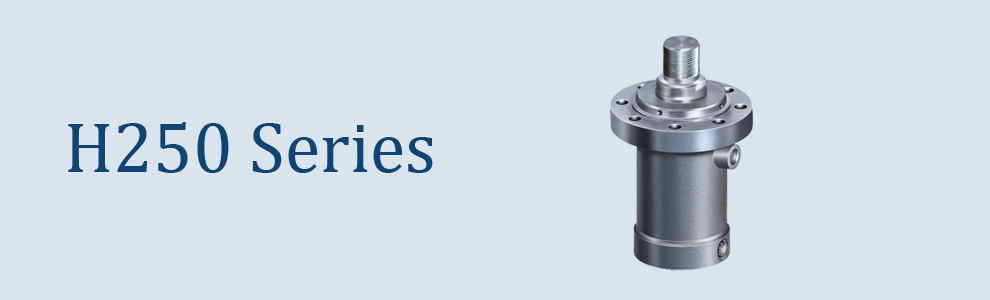

H250 Series
[ Welded round construction
Maximum pressure - 250 bar ]
Cylinder selection guide

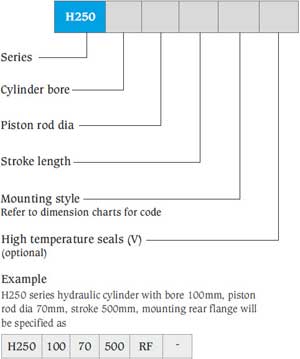

Ordering details for H250 series hydraulic cylinder
Features and specifications

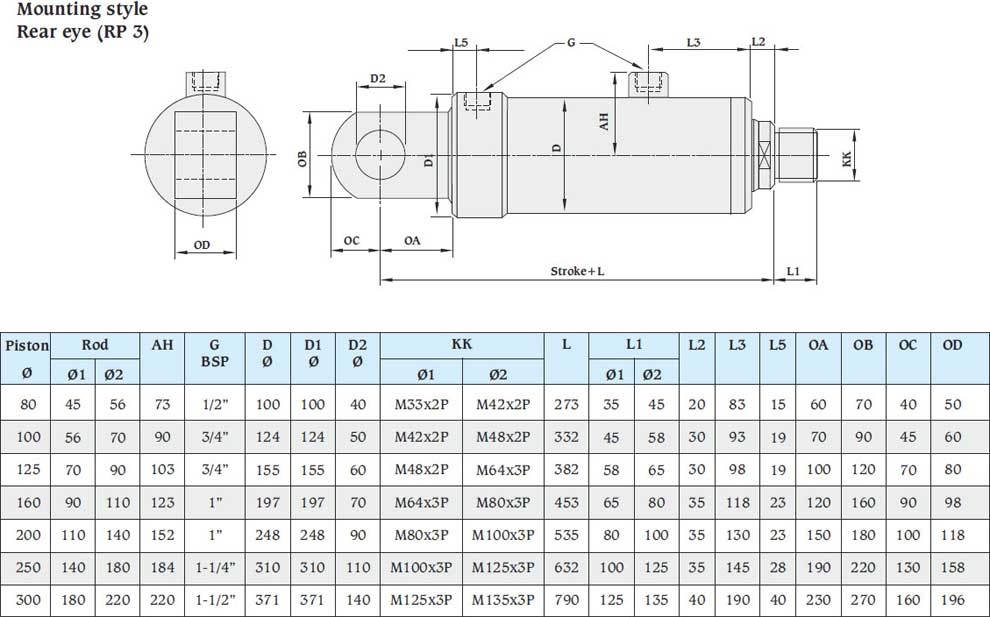

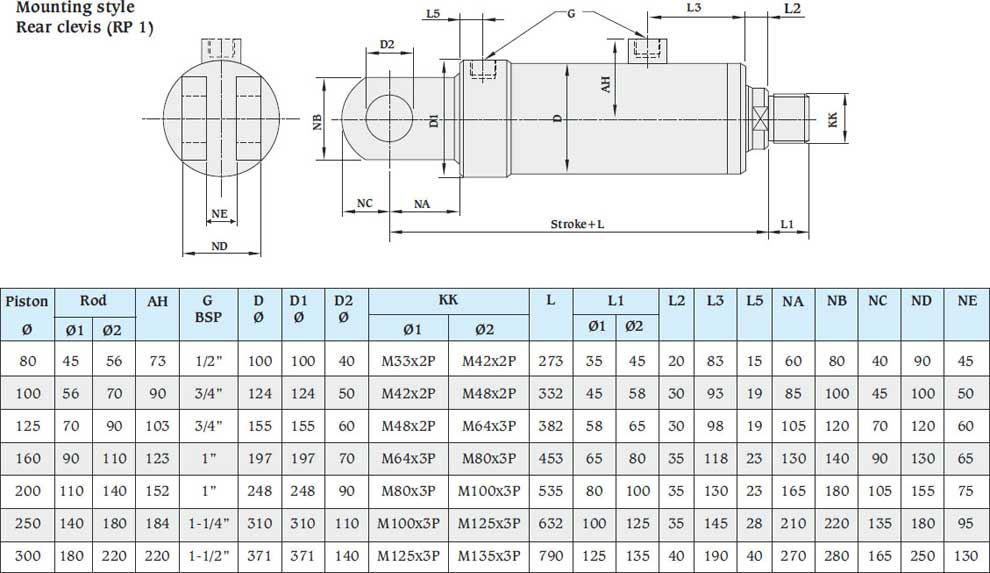

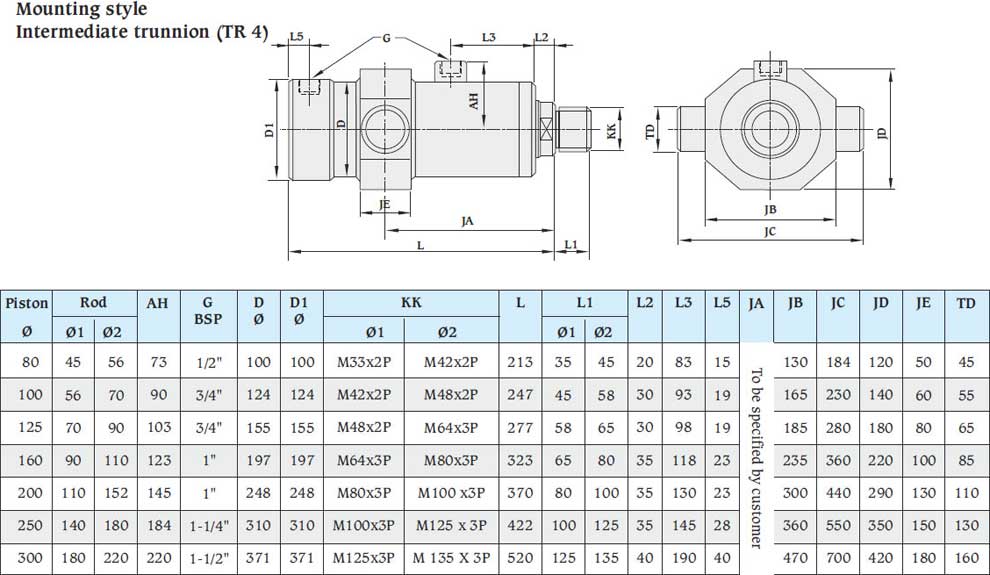

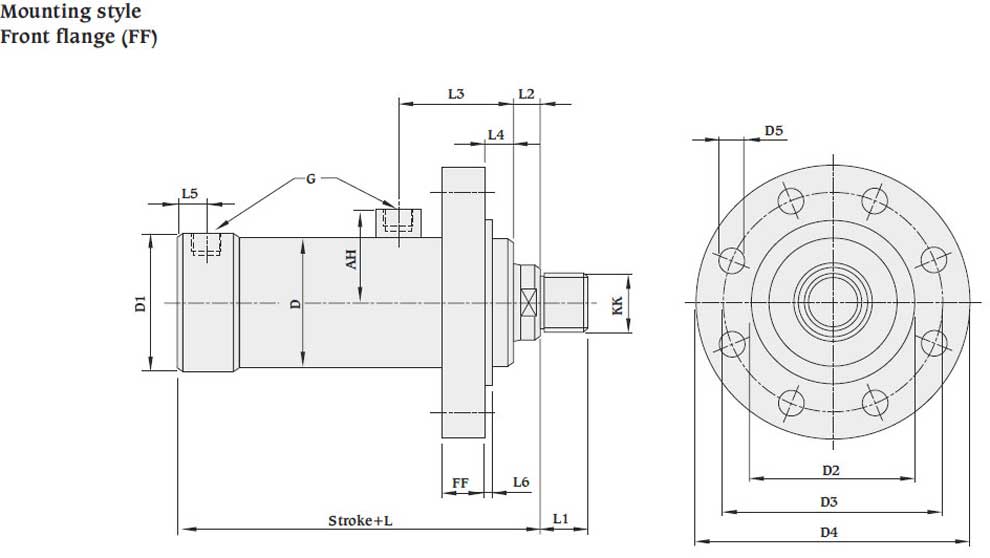

• 5 Standard mounting styles• Provision for smaller as well as bigger rod diameter for each bore size
• Bore sizes - 80 to 300 mm
• Strokes available in any practical stroke length
• Maximum working pressure - 250 bar
• Piston rods - 45mm to 220mm
• Single rod designs
• Non-cushioned
• Temperature range : -
-20 C to +80 C (standard)
-20 C to +150 C (optional)
• Seal types to suit a wide variety of operating environments
• Standard fluid - Mineral oil DIN 51524 (HL, HLP)

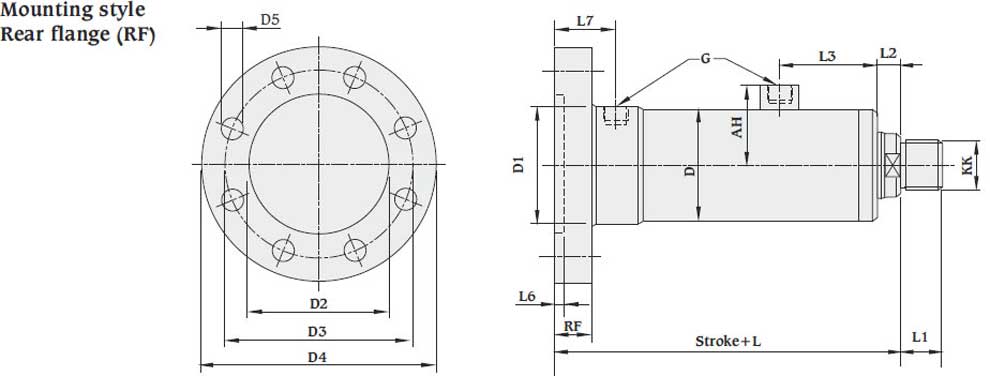

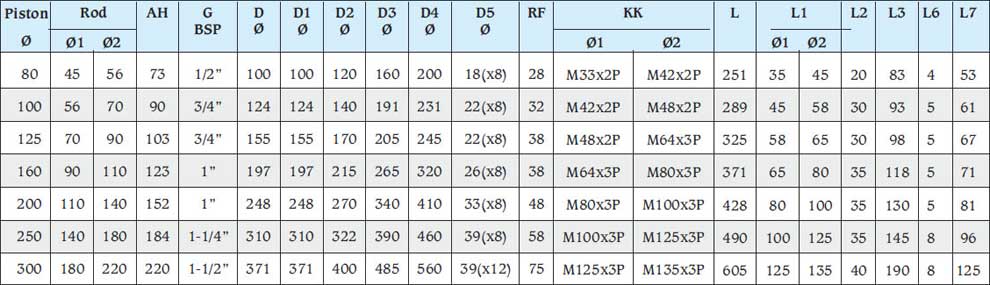

All dimensions are in millimeters unless otherwise stated.
