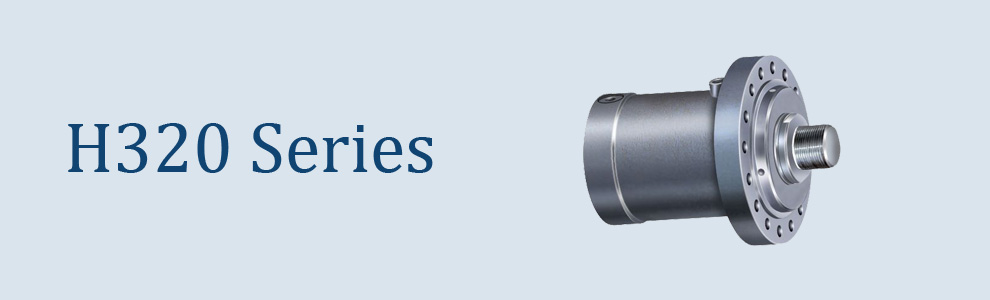

H320 Series

[ Welded round construction Maximum pressure - 320 bar roun ]

Cylinder selection guide



Ordering details for H320 series hydraulic cylinder








Features and specifications

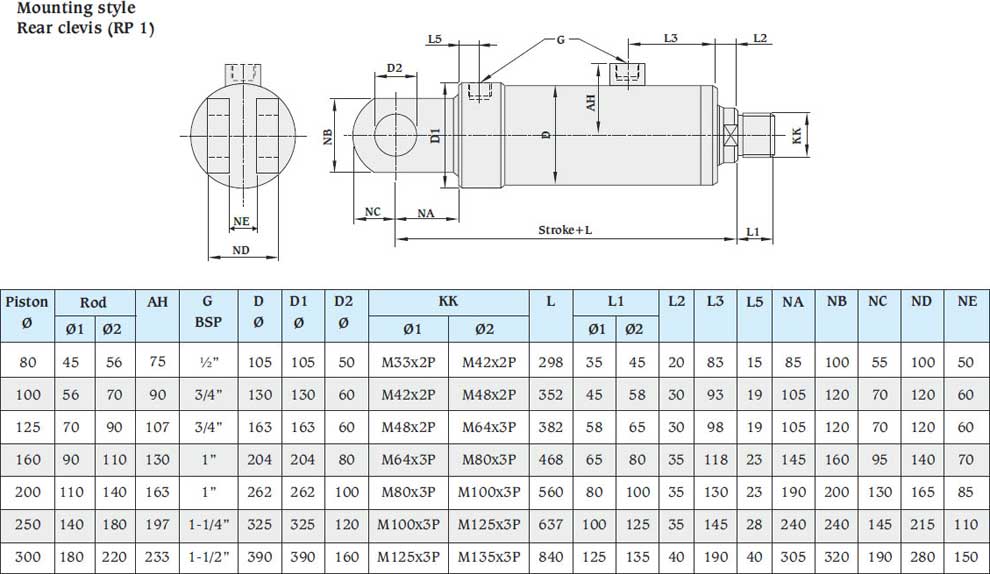

• 5 Standard mounting styles
• Provision for smaller as well as bigger    rod diameter for each bore size
• Bore size - 80mm to 300 mm
• Strokes available in any practical stroke    length
• Maximum working pressure - 320 bar
• Piston rods - 45 mm to 220 mm
• Single rod design
• Non-cushioned
• Temperature range : -
   -20 C to + 80 C (standard)
   -20 C to + 150 C (optional
• Seal types to suit a wide variety of    operating environments
• Standard fluid - Mineral oil DIN 51524    (HL, HLP)

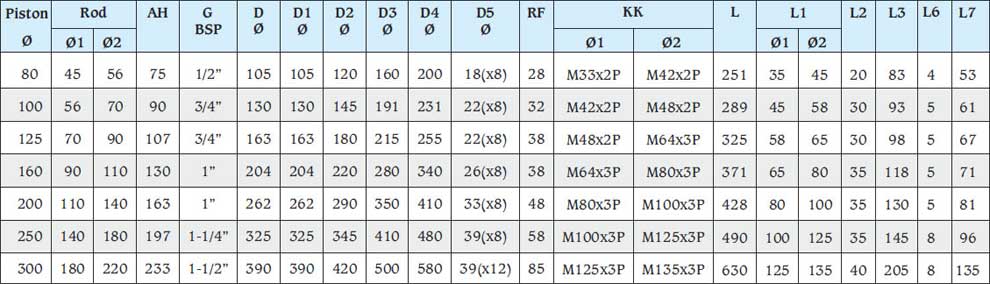

All dimensions are in millimeters unless otherwise stated.
