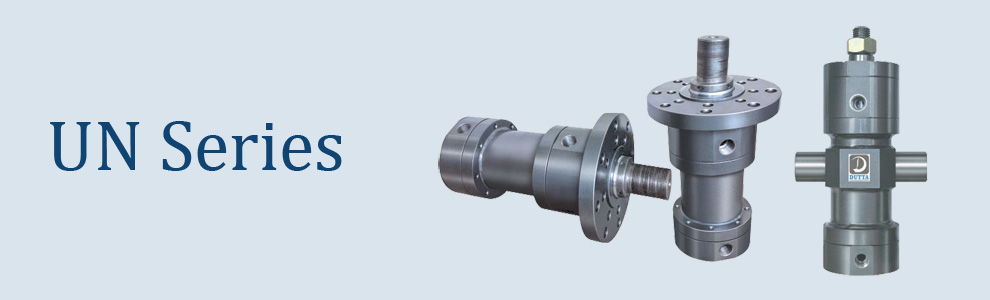

UN Series

[ Mill type welded round construction Maximum Pressure - 160 bar, As per ISO - 6020/1 (2007) ]

Cylinder selection guide

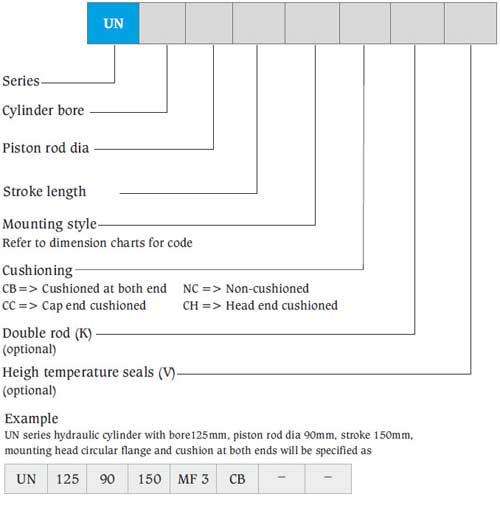

Ordering details of UN Series hydraulic cylinders
Features and specifications
Interchangeable mountings

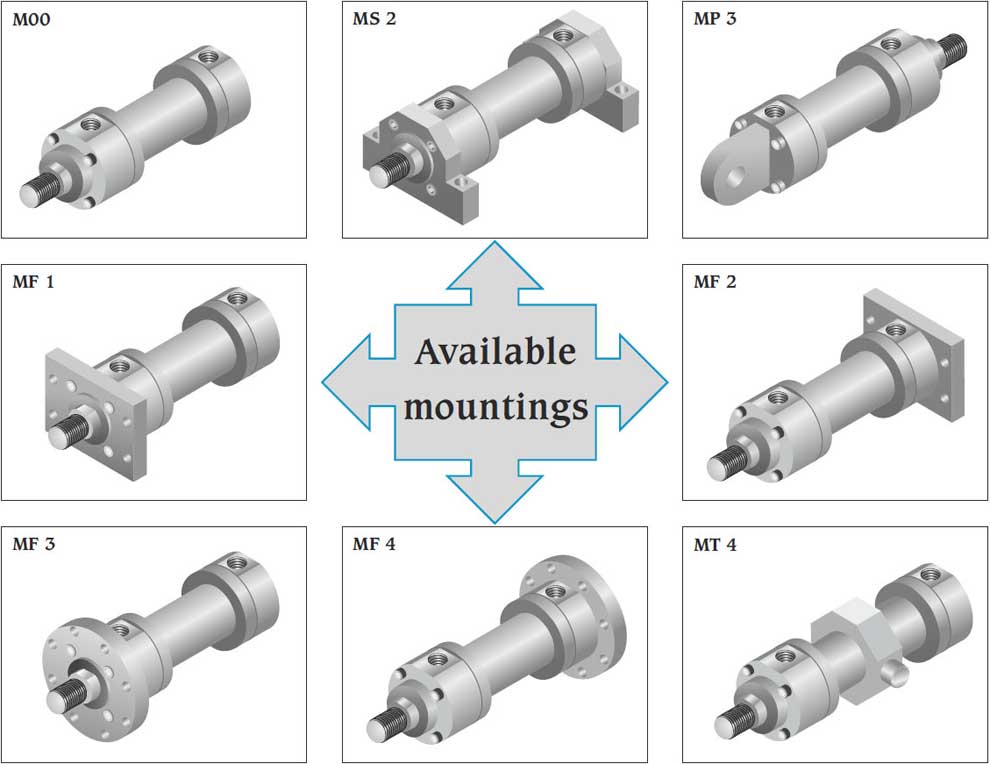

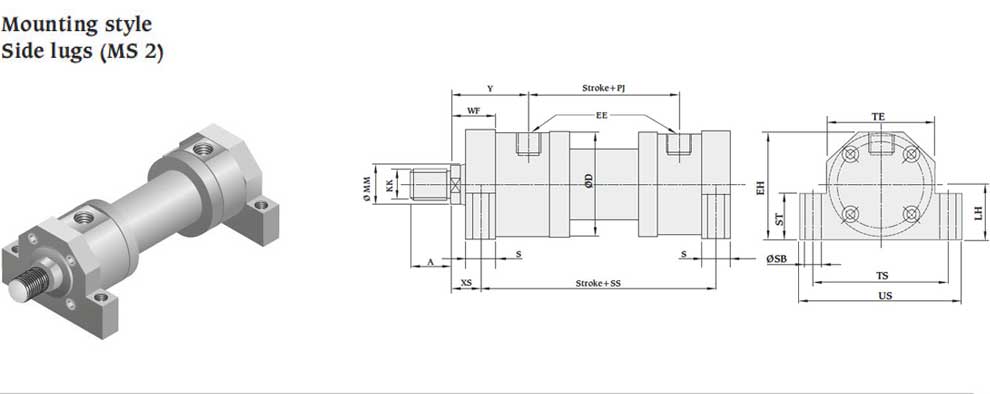

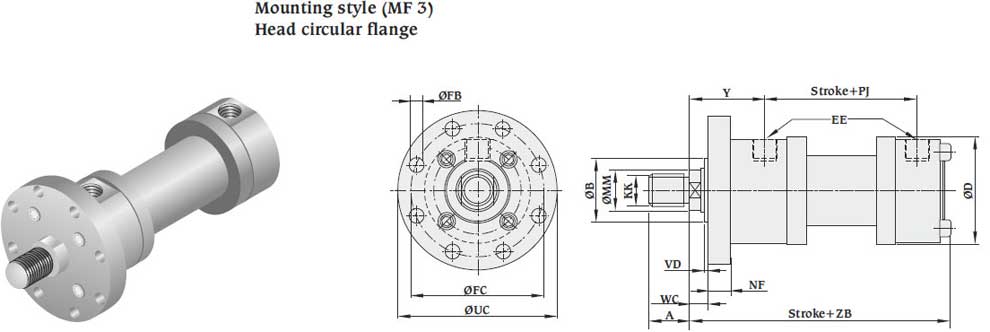

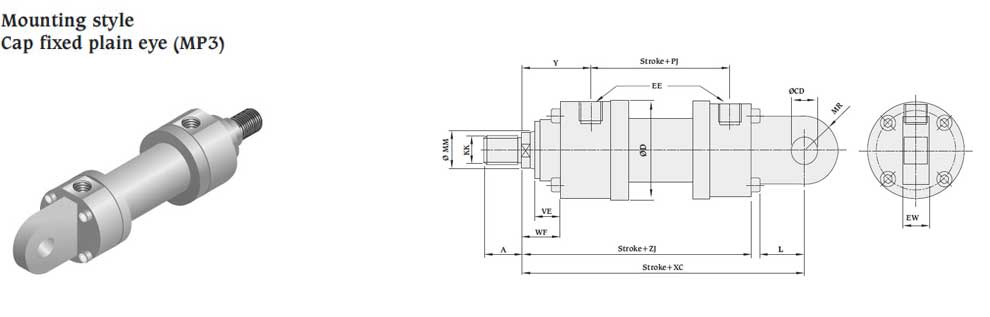

8 Standard mounting styles
Provision for smaller as well as bigger    rod diameter for each bore size
Wide range of mounting accessories
Bore sizes - 40mm to 200mm
Strokes available in any practical stroke    length
Maximum working pressure - 160 bar
Piston rods - 22mm to 140mm
Single rod designs
Cushioning available from 63mm bore    onwards only
Cushions available at either end
Temperature range : -
   -20 C to +80 C (standard)
   -20 C to +150 C (optional)
Seal types to suit a wide variety of    operating environments
Standard fluid - Mineral oil DIN 51524    (HL, HLP)

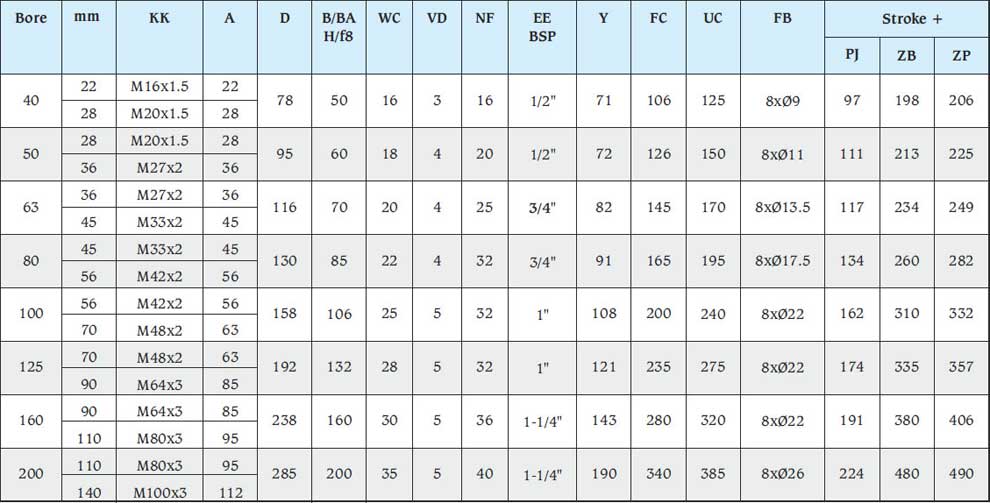

All dimensions are in millimeters unless otherwise stated.
